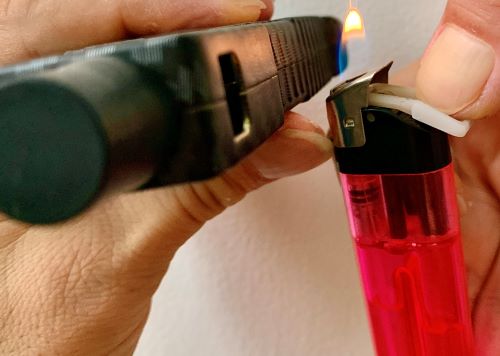

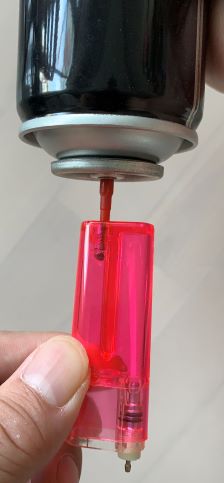

- Fill gas upside down.
Do not fill too full, and do not fill vigorously to avoid leakage.

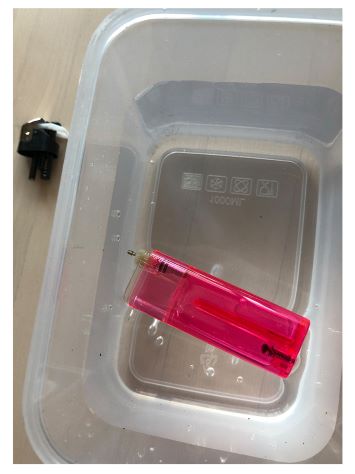

- Check leakage.
Put Tank into water, to see bubbles.

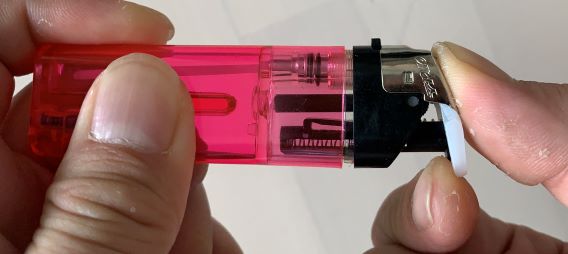

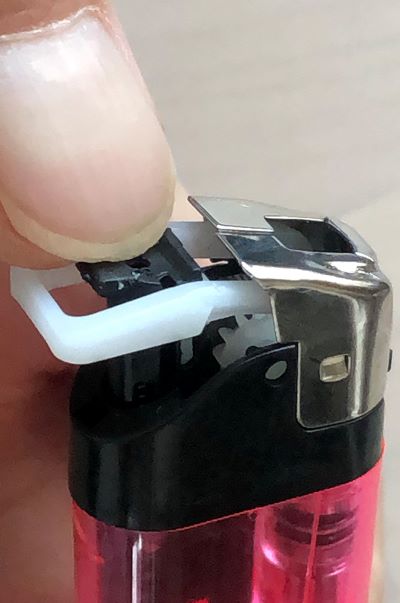

- Firstly, put the “Lighter Head Part” lightly on the “Lighter Tank Part”, then the index finger upward continuously lifting the white button, the thumb at the same time downward press the Metal Wind Shield, and finally press the two parts firmly together to assemble them.

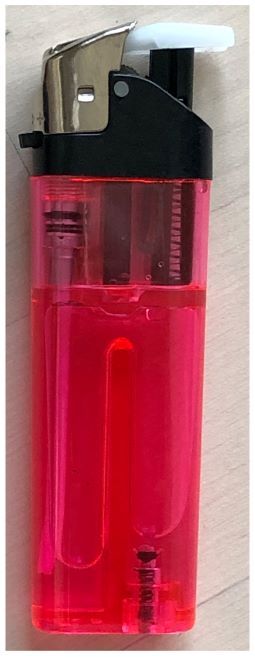

The lighter is assembled!
4. The lighter is ok!

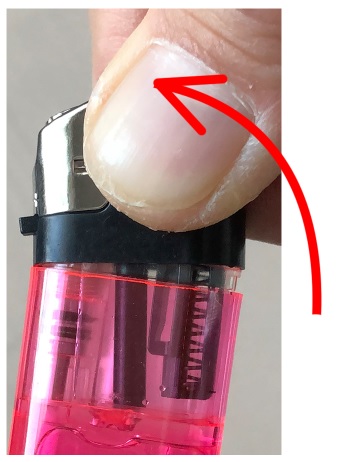

- When the ignition rate decreases in the future, the “Lighter Head Part” can be disassembled by “rotating” it in one direction as shown in the picture.
Replacement with new “Lighter Head Part”.

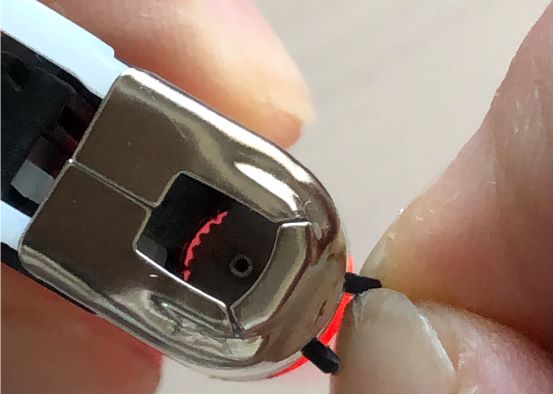

6. use knife to cut the Adjust Ring into 2 legs.
7. Grabbing one leg will be mutually slippery and the flame height can’t be adjusted.

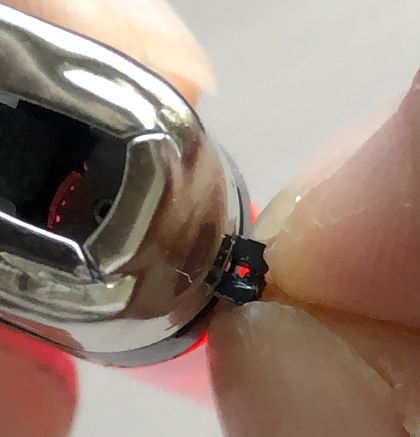

8. grabbing 2 legs, the flame height can be adjusted.
By grabbing 1 or 2 legs, the flame height can be infinitely adjusted.

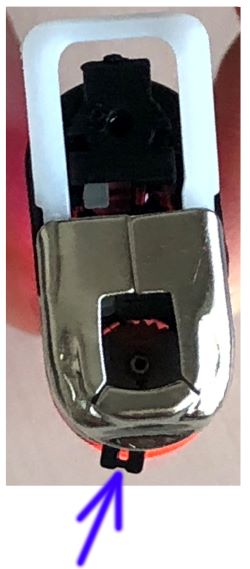

- Thumb nail press the black button in the middle to ignite.
Child-safe lighter, prevent children from playing. It is a little difficult to ignite, please understand
- Best flame height: the overall height of the flame is equal to the thickness of the device.
The flame mustn’t be big!!

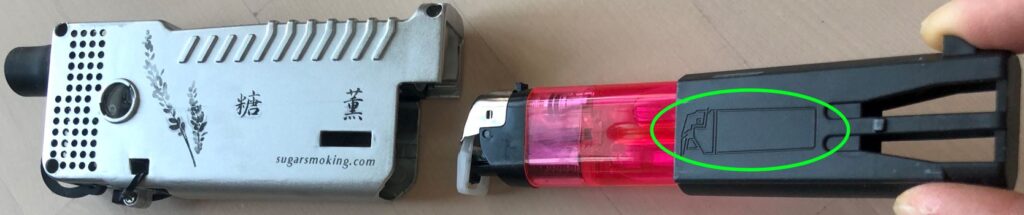

11. insert the lighter into Sleeve according to the pattern, and insert into the Main Body together according to the direction shown in the picture.

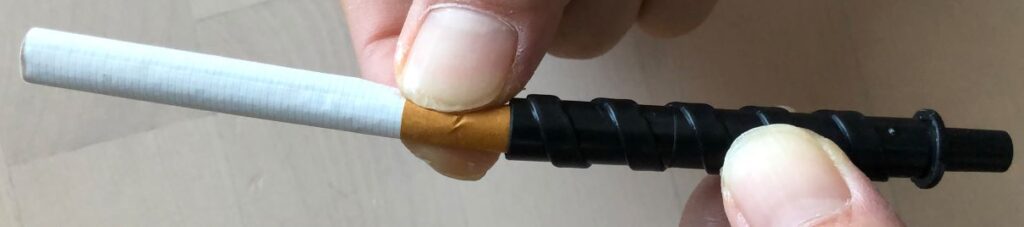

12. Screw the cigarette (standard size) into the Threaded Tube like a screw. Don’t insert it too deep, otherwise the final part of the cigarette will not be ignited and wasted.

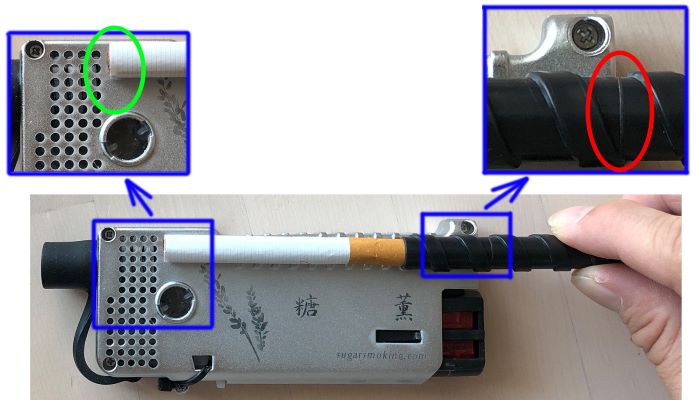

- Adjustment of the depth for inserting cigarette(standard size) into the Threaded Tube: the left end of the cigarette is aligned with the “flame tip” (about 1 mm from the holes, see Green circle); The tick mark on the Threaded Pipe at the right end is aligned with the metal shell(see Red circle).
This adjusts the optimal depth of the cigarette into the Threaded Tube. Be sure to learn to align the end of the cigarette with the “flame tip”.

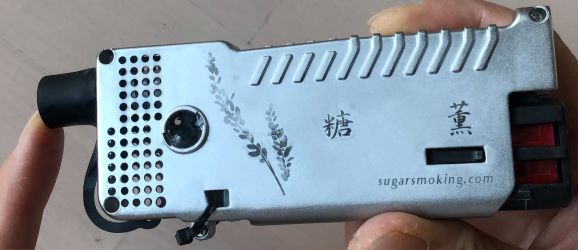

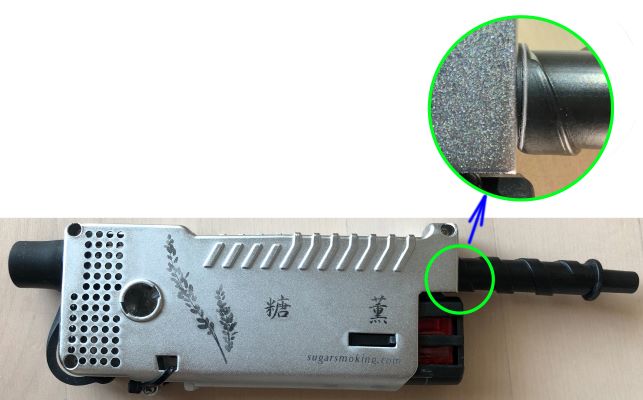

14. The Threaded Tube and cigarette together are screwed into the Main Body, and the tick mark on the Threaded Tube are aligned with the Metal Shell.

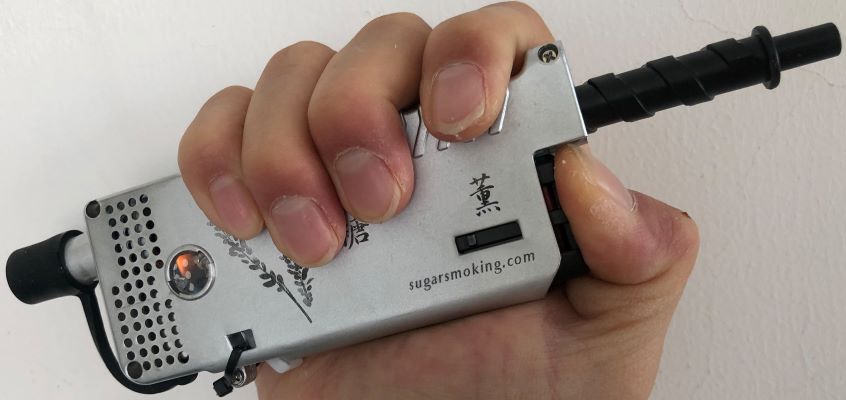

- Press the button with thumb, the lighter ignites and the Threaded Tube advances automatically.
Toast for 2 seconds before smoking, then gently suction, stop, suction, stop, suction, stop… (long gentle suction doesn’t clog easily, but the flavor is poor. Short suction is prone to clogging, but the flavor is good), keeping lips sealed throughout. Once the smoke density is sufficient, you can stop and exhale. Be careful not to let the density get too high to avoid causing high-temperature combustion, which can lead to monotony in flavor. After smoking, release the button, and the flame will extinguish automatically, the cigarette will be extinguished automatically.
Wait for the LOONG SHELL to cool down completely before next smoking; the device needs enough rest and cooling. It is recommended to rotate several lighters to allow each lighter enough rest and cooling. If the lighter fails to ignite, please wait at least 10 seconds for air to flow back into the device before the next ignition.

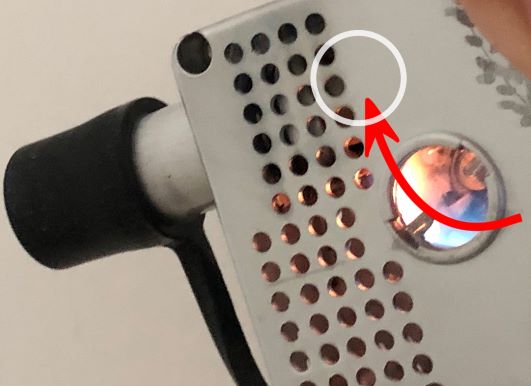

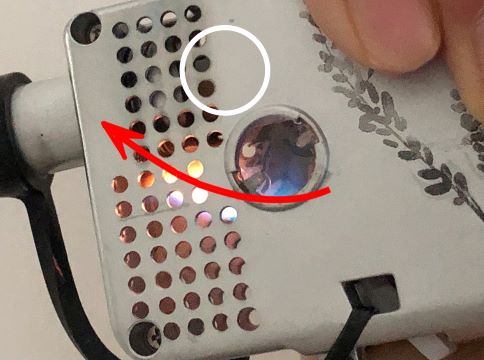

- Flame point upwards following the red arrow, which is the best, just right to ignite the cigarette inside the white circle.
Using seversal lighters in rotation allows the lighters to rest well, the flame size will be very stable.
- flame pointing forward. Indicates that the flame is too large and needs to be turned down.
If the flame is too large, the device will be hot, and the cigarette inside the white circle will not be ignited.

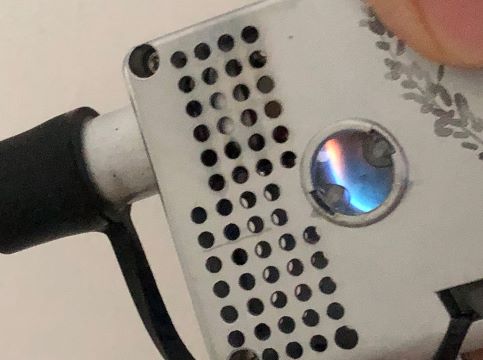

- The flame is too small, it is better to adjust it bigger.
Too small flame will result in failure to ignite.

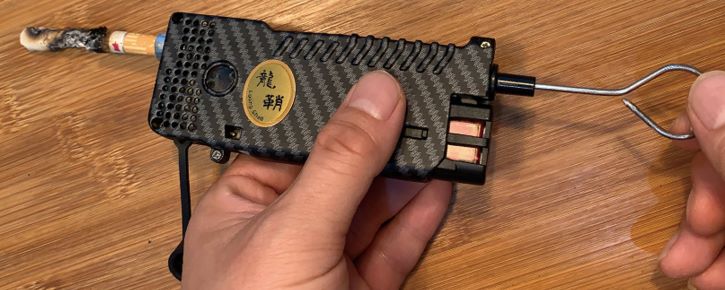

19. After the Threaded Tube reaches the endpoint, wait for 3 minutes to extinguish, then remove the Silicone Cap on the left end and use a long needle to poke out the ash.

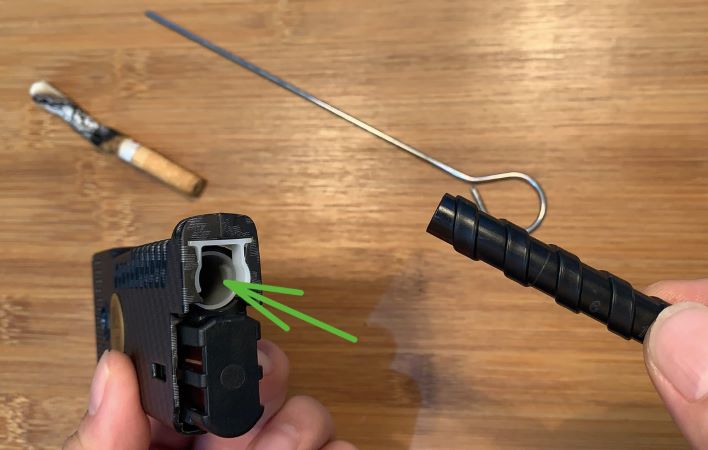

20. Unscrew the Threaded Tube out, and blow air towards the direction indicated by the green arrow to blow out any remaining ash.
21. Finally close the Silicone Cap. The Silicone Cap should be kept on throughout the smoking period.

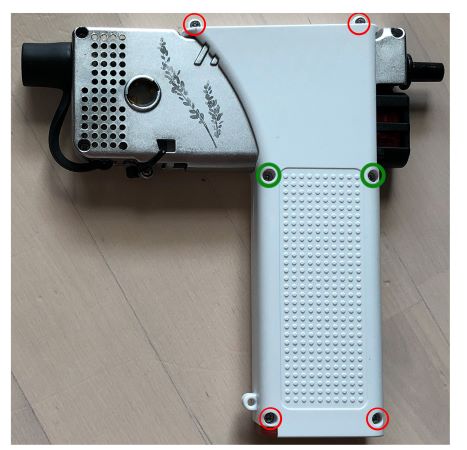

22. It is up to you to decide whether to install the Big Hand Handle(tighten the 6 screws in the picture, of which the two screws in the center green circle should be loosened a little).

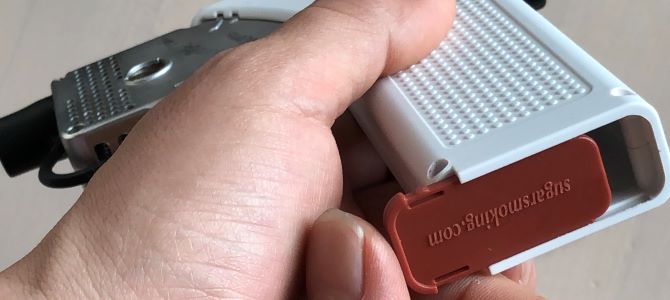

23. Install the Bottom Cover of the Handle, with the side with text facing outward.
- When using non-standard sized slim diameter cigarettes, please install Adapter.
And make sure to check according to Clause 13 to feed the end of the cigarette to the “Flame Tip”.

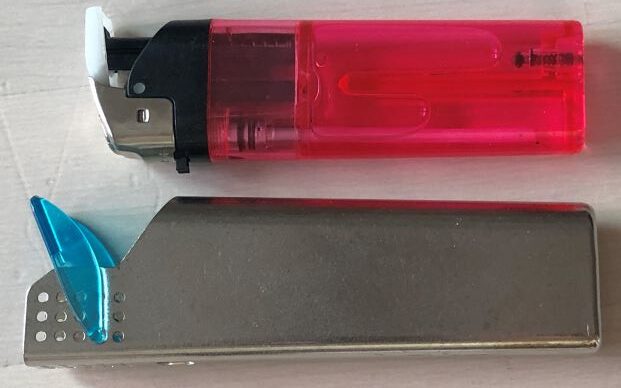

25. Insert Child Safety Lighter into “Iron Case”, it will become to a normal lighter.
